The Mountz LB Series torque loading bench is designed to ensure accurate calibration of torque wrenches. Laboratory grade construction assures accurate torque calibration and pre-setting, independent of human influence or transducer side and end load factors. The drive system assures the load application, eliminating the operator induced test error. Built for durable use, the Loading Bench reduces the operator effort required to attain and sustain torque during the calibration process. Large wheel for smooth manual loading. Operates in both clockwise and counterclockwise directions.
- Three models with ranges up to 2000 lbf.ft.
- Designed for use with a Mountz BMX torque sensor and torque analyzer
- Mountable for bench or a cabinet
- Adjustable to fit the size of wrench being tested
- Load applied easily and slowly for accurate calibration
| Model | Torque Capacity | Reaction Position | Weight | Dimensions |
|---|---|---|---|---|
| LB250F | 250 lb-ft / 340 Nm | 4″ to 28″ from center of turn-table | 53 lbs. | 37.5″ W x 12″ H x 10.75″ D |
| LB750F | 750 lb-ft / 1000 Nm | 4.87″ to 41.25″ from center of turn-table | 130 lbs. | 50″ W x 15″ H x 15.5″ D |

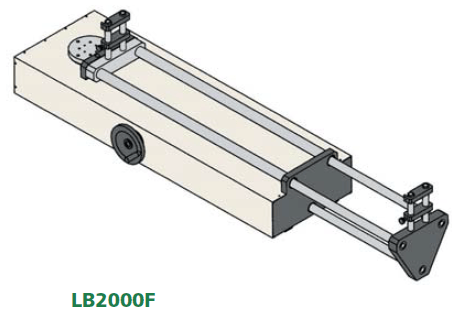

| LB2000F | 2000 lb-ft / 2700 Nm | 4.87″ to 75.5″ from center of turn-table | 160 lbs. | 84.75″ W x 15″ H x 15.5″ D |
